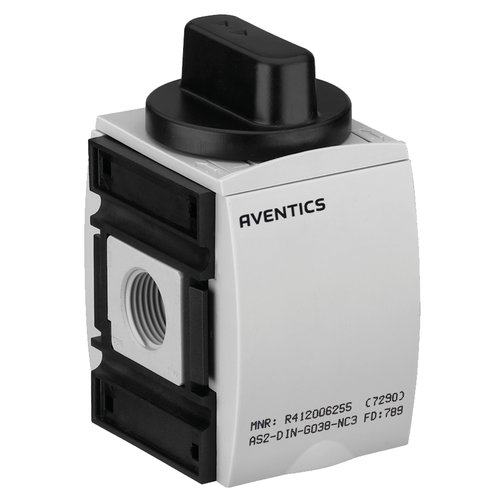

3/2-stop valve Aventics art. R412006256
Specifications
| Version | Poppet valve |
| Activation | Mechanical |
| Lock type | lockable |
| Actuating element | rotary switch |
| Sealing principle | Soft sealing |
| Certificates | suitable for ATEX |
| Working pressure min./max. | 0 ... 16 bar |
| Ambient temperature min./max. | -10 ... 50 °C |
| Medium temperature min./max. | -10 ... 50 °C |
| Medium | Compressed air Neutral gases |
| Max. particle size | 25 µm |
| Weight | 0,206 kg |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . A short silencer is required for wall mounting (see accessories e.g. R412004817). Suitable for use in Ex zones 1, 2, 21, 22. |
| Material |
|---|
| Housing | Polyamide |
| Front plate | Acrylonitrile butadiene styrene |
| Seals | Acrylonitrile butadiene rubber |
| Threaded bushing | Die cast zinc |
| Actuating element | Polyoxymethylene |
| Locking base | Polyoxymethylene Steel, galvanized |
