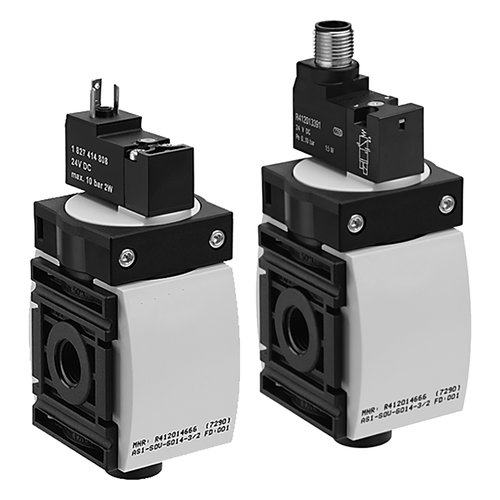

3/2 – pneumatic distributor Aventics art. R412014746
Specifications
| Version | Poppet valve, Can be assembled into blocks |
| Parts | 3/2-directional valve, electrically operated |
| Nominal flow 1 ▶ 2 | 2000 l/min |
| Nominal flow 2 ▶ 3 | 380 l/min |
| Working pressure min./max. | See table |
| Medium | Compressed air Neutral gases |
| Medium temperature min./max. | -10 ... 50 °C |
| Ambient temperature min./max. | -10 ... 50 °C |
| Pilot | Internal |
| Sealing principle | Soft sealing |
| Max. particle size | 25 µm |
| Oil content of compressed air | 0 ... 5 mg/m³ |
| Protection class acc. to DIN EN 61140 with plug | IP65 |
| Weight | See table |
| The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . |
| Material |
|---|
| Housing | Polyamide |
| Front plate | Acrylonitrile butadiene styrene |
| Seals | Acrylonitrile butadiene rubber |
