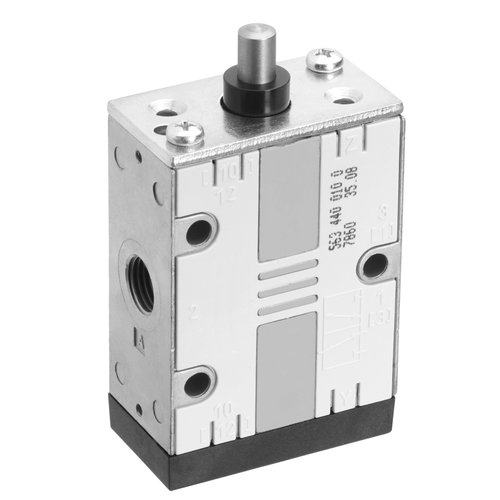

3/2 – pneumatic distributor Aventics art. 5634411100
Specifications
| Version | Spool valve, positive overlapping |
| Activation | Mechanical |
| Switching principle | 3/2 |
| Sealing principle | Soft sealing |
| Nominal flow Qn | 1400 l/min |
| Working pressure min./max. | -0,95 ... 10 bar |
| Control pressure min./max. | See table |
| Ambient temperature min./max. | -25 ... 80 °C |
| Medium temperature min./max. | -25 ... 80 °C |
| Medium | Compressed air |
| Oil content of compressed air | 0 ... 1 mg/m³ |
| Weight | See table |
| option valve: The input and output compressed air connections can be exchanged.The valve can thereby be used in the NC or NO operating mode. |
| Material |
|---|
| Housing | Die cast zinc Polyamide fiber-glass reinforced Die cast zinc |
| Seals | Acrylonitrile butadiene rubber |
| Actuating element | Stainless steel Polyoxymethylene |
