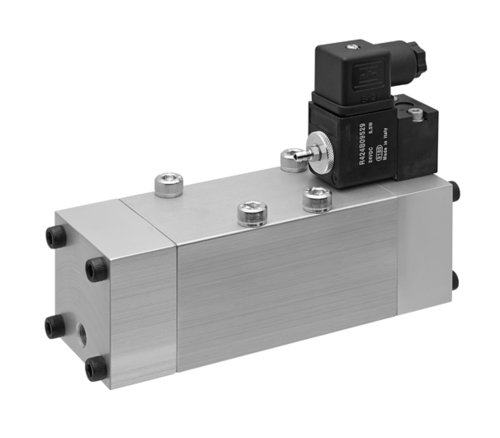

2×3/2-pneumatic distributor Aventics art. R424B10514
Specifications
| Version | Spool valve, positive overlapping |
| Activation | Electrically |
| Pilot | External, Internal |
| Sealing principle | Soft sealing |
| Blocking principle | Single base plate principle |
| Certificates | UR (Underwriters Laboratories) |
| Working pressure min./max. | -0,9 ... 10 bar |
| Control pressure min./max. | 10 bar |
| Ambient temperature min./max. | 0 ... 50 °C |
| Medium temperature min./max. | 0 ... 50 °C |
| Medium | Compressed air |
| Max. particle size | 5 µm |
| Oil content of compressed air | 0 ... 5 mg/m³ |
| Nominal flow Qn | 1400 l/min |
| Pilot control exhaust | With collective pilot air exhaust |
| Protection class with connection | IP65 |
| Protective circuit | Z-diode |
| Reverse polarity protection | Protected against polarity reversal |
| LED status display | Yellow |
| Duty cycle | 100 % |
| Typ. switch-on time | 20 ms |
| Typ. switch-off time | 33 ms |
| mounting screws | cross recessed DIN EN ISO 4757-Z2 |
| Mounting screw tightening torque | 1,3 Nm |
| Weight | 0,144 kg |
| The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result! The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C . The oil content of compressed air must remain constant during the life cycle. Use only the approved oils from AVENTICS. Further information can be found in the “Technical information” document (available in the MediaCentre). |
| The pilot type (external/internal) is not implemented in the valve, but in the end plate of the valve system. The UL certification refers to the pilot valve. |
| Material |
|---|
| Housing | Polyamide |
| Seals | Acrylonitrile butadiene rubber Hydrogenated acrylonitrile butadiene rubber |
